Suitable for connecting PD-RP / PD-RX / PDL-TC-PF / PDL-TC-PFZ / PD4-HT. Extended multi-channel control.
1.Apply to control various cine lenses or SLR lenses
2. 6 control channels optional
3.Automatically calibrated lens travel
4.Manually set the lens travel
5.Motor rotation direction setting
·Size: L 108mm * W 66mm * H 23mm
·Maximum torque: 0.8Nm
·Operating Voltage: 7-20V
·Power supply: D/P-tap power supply

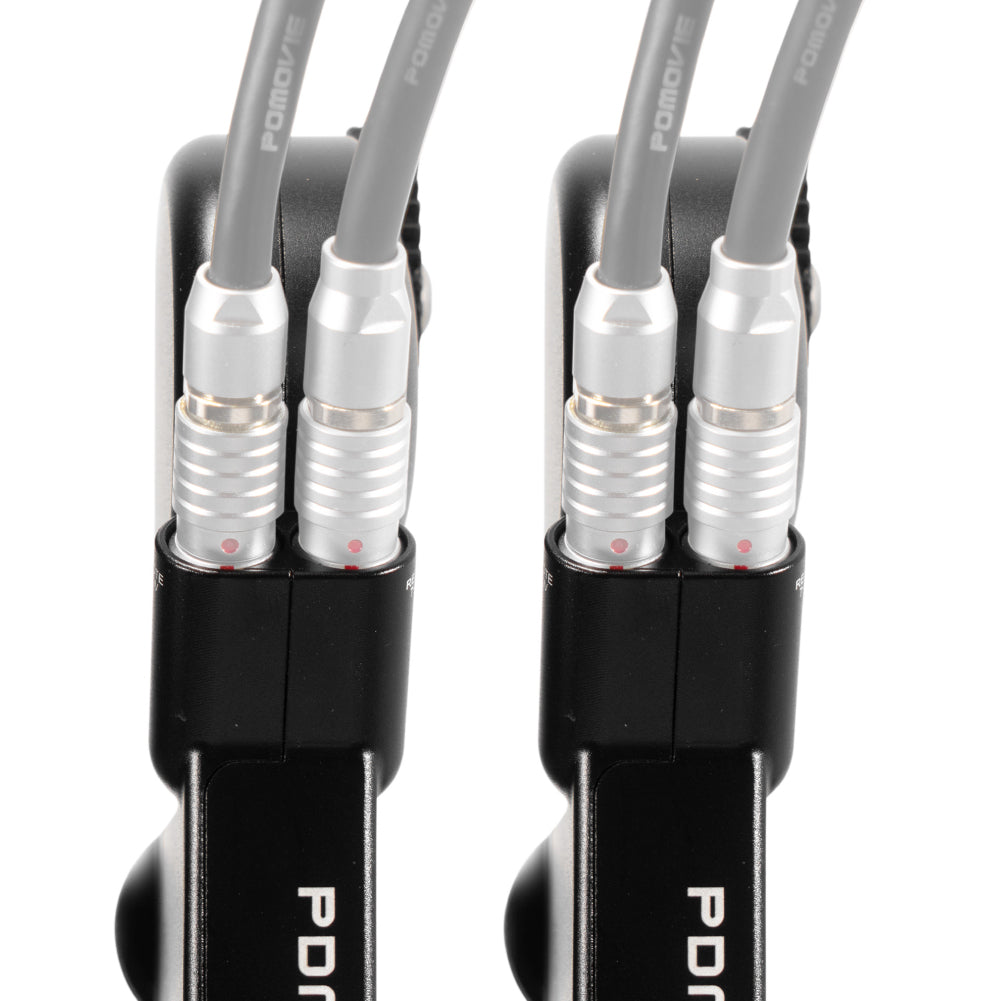

·connections: LEMO 6 PIN series line
·Working distance: Depends on the wireless reception distance of the master motor or depends on the wire length of the wired control (MAX 100m)

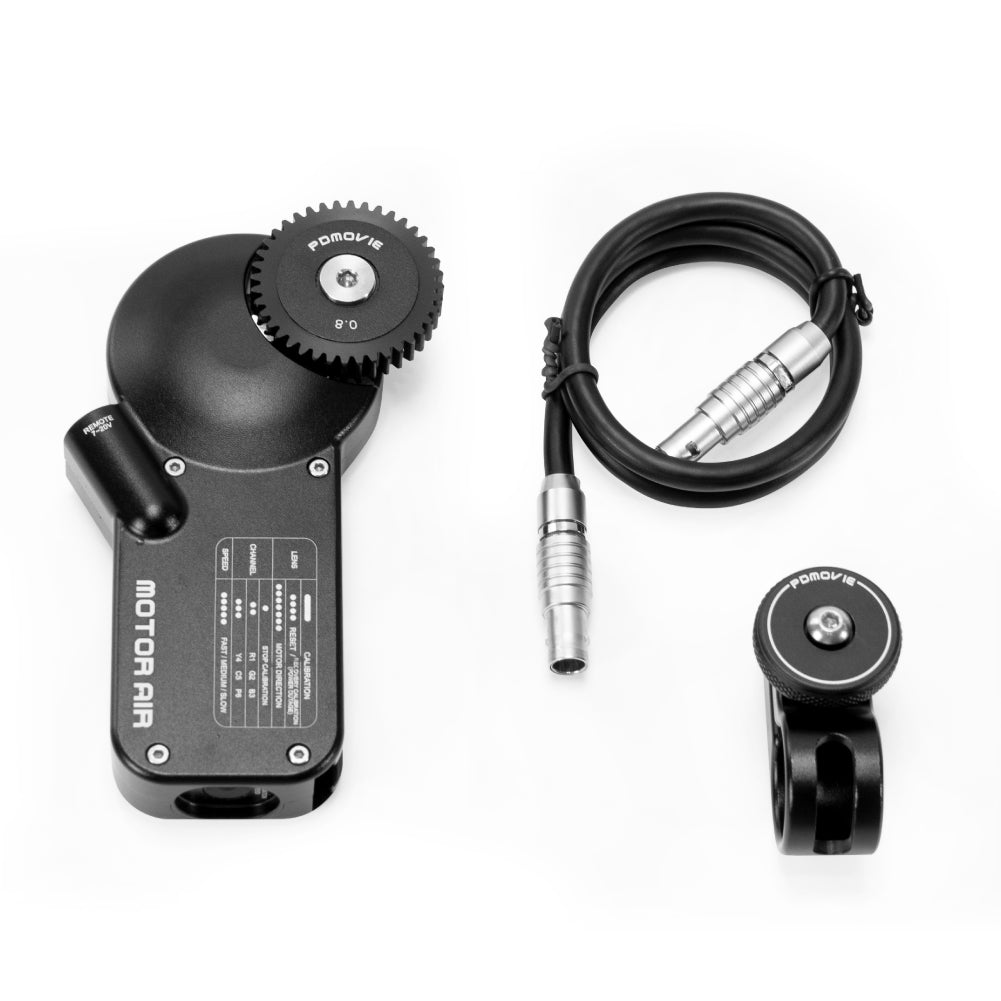

Slave Motor torque 0.8Nm(PD-MX)*1
Motor Drive Cable0.4M(6pin)*1
Buyers pay your own taxes.
